ApplePay周期性订阅集成-商户管理订阅计划

该文档介绍了商户管理周期性订阅计划时，周期性订阅集成ApplePay的相关集成步骤，具体包含：绑定支付方式、获取绑定支付方式结果、发起代扣、获取代扣结果等。

1. 准备事项

根据配置与签名引导，获取商户自助平台账号、获取商户appId和密钥、配置异步通知地址、配置公钥和私钥。

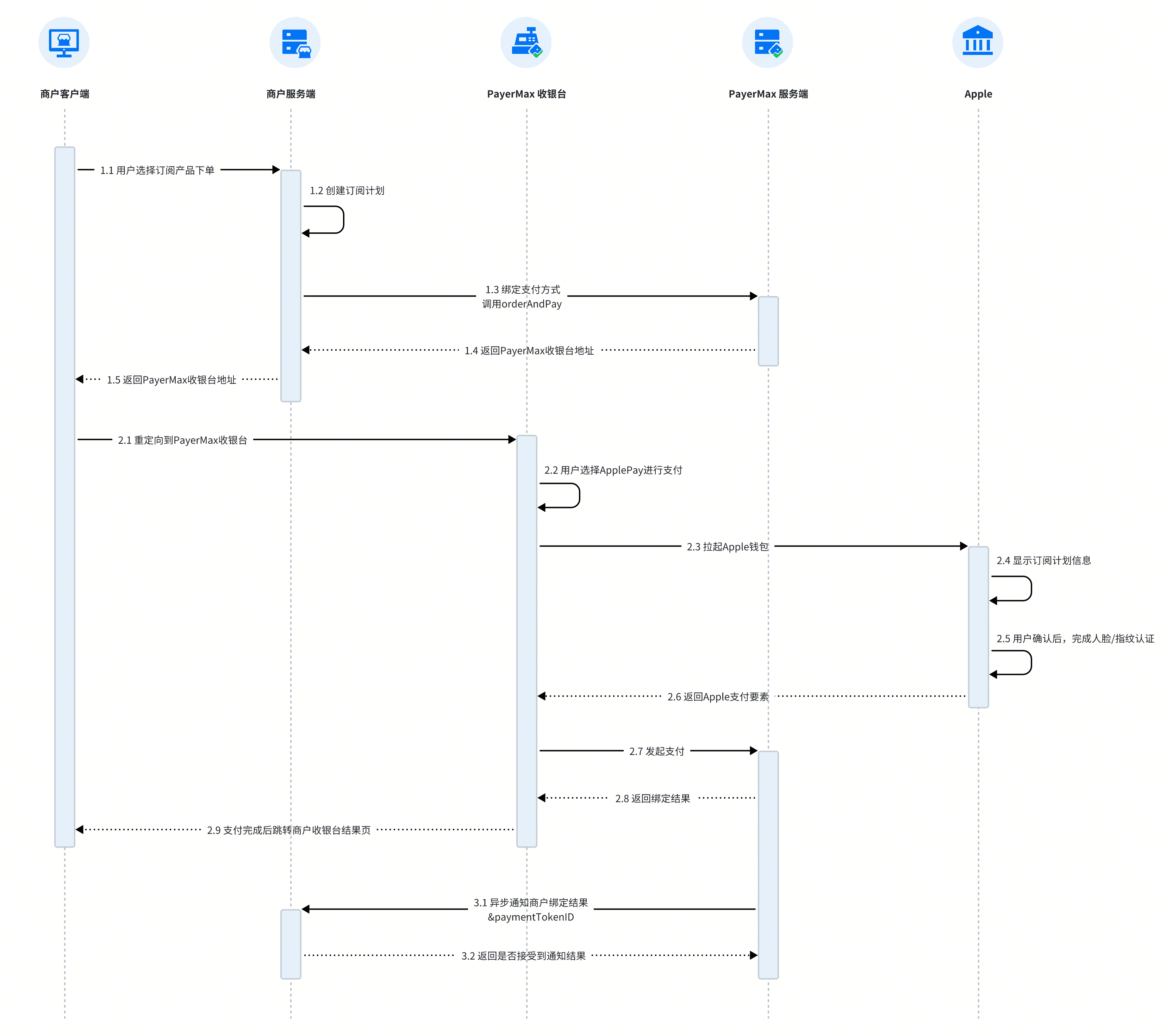

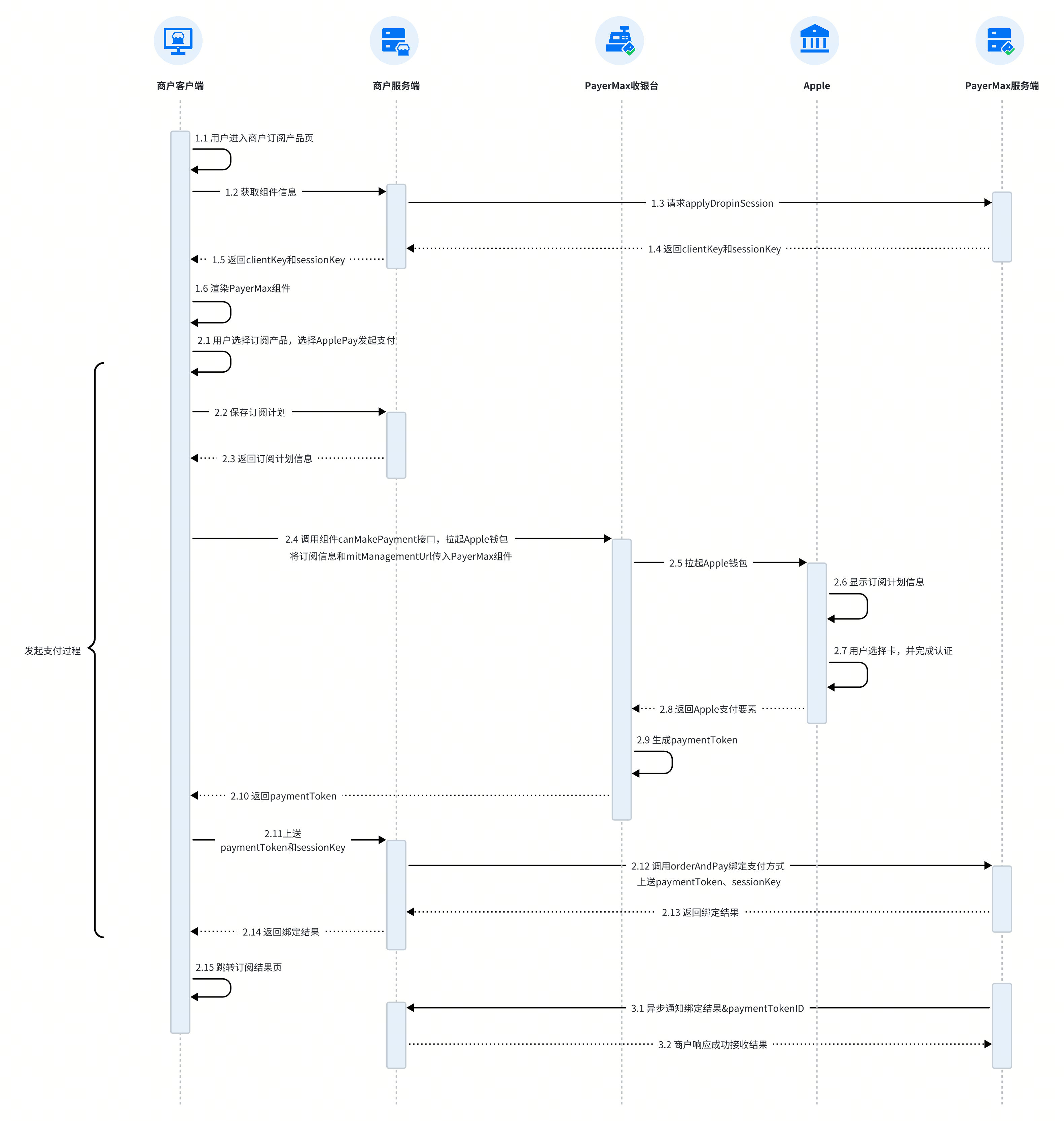

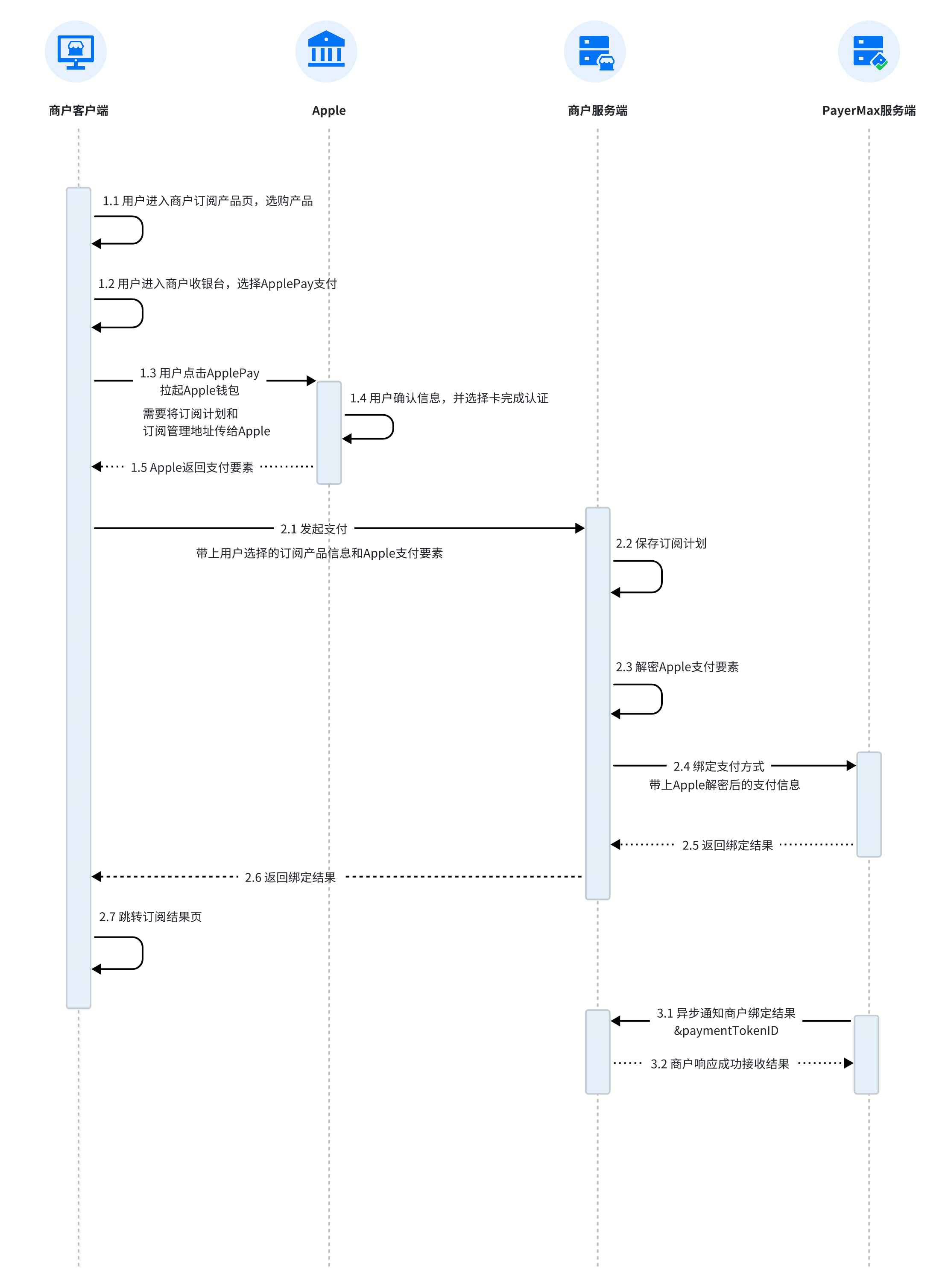

2. 交互流程

3. 代扣规则

商家代扣可分为首笔扣款和后续代扣；首笔扣款需要用户绑定支付方式，后续代扣是商户发起的扣款，扣款过程中无需用户参与；
首笔扣款时，支持使用收银台模式、API模式和前置组件模式来集成；后续扣款时，无需用户参与，只需使用API完成扣款；
首笔扣款时，交易金额（totalAmount）支持0元和大于0元的具体金额；如果交易金额为0元，则表示只绑定支付方式；如果交易金额大于0，则表示发起支付并绑定支付方式；交易成功后，PayerMax会为该用户的支付方式生成一个token（paymentTokenID）并通知给商户，用于进行后续代扣；
后续扣款时，上送paymentTokenID来替代用户支付方式，即可完成扣款。

4. 绑定支付方式

核心参数说明：

totalAmount：交易金额，支持传0或者大于0的金额；
paymentDetail.mitType：代扣类型，SCHEDULED标识为周期性订阅，UNSCHEDULED标识为非周期性代扣；
paymentDetail.tokenForFutureUse：true/false，是否需要生成token用于后续代扣；首次绑定支付方式时，该值传true；
paymentDetail.merchantInitiated：true/false，是否是商户发起的交易；首次绑定支付方式时，需要用户参与完成认证或授权，传值为false；
mitManagementUrl：商户管理订阅计划的地址，用户可通过访问该地址操作订阅计划，如取消订阅等；
subscriptionPlan：订阅计划信息。

4.1 使用PayerMax收银台绑定支付方式

收银台模式绑定支付方式接口文档，请参阅收银台-下单 API。不同环境的请求地址如下。

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay

交易金额大于0元时，请求参数示例:

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // 商户下单唯一单号
    "subject": "代扣标题", // 标题
    "totalAmount": 10, // 代扣金额
    "country": "US",
    "currency": "USD", // 代扣币种
    "userId": "test1111", // 用户号
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Hosted_Checkout", // 固定值：Hosted_Checkout
    "expireTime": "1800",
    "subscriptionPlan": { // 订阅信息
        "subject": "subject",
        "description": "PMMAX周期首期扣款。",
        "totalPeriods": 12,
        "periodRule": {
            "periodUnit": "M", // 按月（M），D(日)，W（周），Y（年）扣款
            "periodCount": 1 // // 1个月扣款一次
        },
        "periodAmount": { // 固定期扣款金额
            "amount": 20,
            "currency": "USD"
        },
        "firstPeriodStartDate": "2025-08-26T12:00:00+00:00",
        "trialPeriodConfig": { // 优惠期规则
            "trialPeriodCount": 1, //优惠期数
            "trialPeriodAmount": { // 优惠期扣款金额
                "amount": 10,
                "currency": "USD"
            }
        }
    },
    "mitManagementUrl": "http://your.subscription.com",
    "paymentDetail": {
      "paymentMethodType": "APPLEPAY", //必传，值为APPLEPAY
      "mitType": "SCHEDULED", // 必传，MIT类型，周期性代扣时为SCHEDULED，非周期性代扣时为UNSCHEDULED
      "tokenForFutureUse": true, // 必传，值为true，生成paymentTokenID，用于后续代扣
      "merchantInitiated": false, // 必传，false标识不是商户主动发起，有用户参与；true标识商户主动发起，不需要用户参与
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

交易金额为0时，请求参数示例:

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // 商户下单唯一单号
    "subject": "代扣标题", // 标题
    "totalAmount": 0, // 代扣金额
    "currency": "USD", // 代扣币种
    "userId": "test1111", // 用户号
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Hosted_Checkout", // 固定值：Hosted_Checkout
    "expireTime": "1800",
    "subscriptionPlan": { //必填 订阅信息
        "subject": "subject",
        "description": "PMMAX周期首期扣款。",
        "totalPeriods": 12,
        "periodRule": {
            "periodUnit": "M", // 按月（M），D(日)，W（周），Y（年）扣款
            "periodCount": 1 // 1个月扣款一次
        },
        "periodAmount": { // 固定期扣款金额
            "amount": 20,
            "currency": "USD"
        },
        "firstPeriodStartDate": "2025-08-26T12:00:00+00:00",
        "trialPeriodConfig": { // 优惠期规则
            "trialPeriodCount": 1, //优惠期数
            "trialPeriodAmount": { // 优惠期扣款金额
                "amount": 10,
                "currency": "USD"
            }
        }
    },
    "mitManagementUrl": "http://your.subscription.com", //必填
    "paymentDetail": {
      "paymentMethodType": "APPLEPAY", //必传，值为APPLEPAY
      "mitType": "SCHEDULED", // 必传，MIT类型，周期性代扣时为SCHEDULED，非周期性代扣时为UNSCHEDULED
      "tokenForFutureUse": true, // 必传，值为true，生成paymentTokenID，用于后续代扣
      "merchantInitiated": false, // 必传，false标识不是商户主动发起，有用户参与；true标识商户主动发起，不需要用户参与
      "buyerInfo": {
        "firstName": "Deborah",
        "lastName": "Swinstead",
        "email": "your@gmail.com",
        "phoneNo": "0609 031 114",
        "address": "Test Address",
        "city": "Holden Hill",
        "region": "SA",
        "zipCode": "5088",
        "clientIp": "211.52.321.225",
        "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
      }
    }
  }
}

响应示例:

json

{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        // PayerMax 收银台地址
        "redirectUrl": "https://cashier-n-uat.payermax.com/static/processApiV2.html?tradeToken=T2025042306527802000033&integrate=DIRECT_API&country=UN&payRequestNo=20250423060120EP4366527897000250005&merchantId=010213834784554&merchantAppId=6666c8b036a24579974497c2f9a33333&token=902170aeaadb4621af8d9530398d0efa&orderLan=en&countryLan=en&strategyLan=LUBCO&pmaxLinkV=1",
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "PENDING"
    }
}

4.2 API模式绑定支付方式

商户需要在商户的收银台上，从Apple获取支付要素，调用PayerMax绑定支付方式时，需要将支付要素解密后，上送给PayerMax完成绑定。

API模式绑定支付方式API文档，请参阅纯API支付 API。不同环境的请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay

请求参数示例:

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // 商户下单唯一单号
    "subject": "代扣标题", // 标题
    "totalAmount": 10, // 代扣金额
    "currency": "USD", // 代扣币种
    "userId": "test1111", // 用户号
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // 固定值：Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // 终端类型，WEB、WAP or APP
    "osType": "ANDROID", // 操作系统类型 ANDROID or IOS
    "subscriptionPlan": { //非必填 订阅信息
        "subject": "subject",
        "description": "PMMAX周期首期扣款。",
        "totalPeriods": 12,
        "periodRule": {
            "periodUnit": "M", // 按月（M），D(日)，W（周），Y（年）扣款
            "periodCount": 1 // // 1个月扣款一次
        },
        "periodAmount": { // 固定期扣款金额
            "amount": 20,
            "currency": "USD"
        },
        "firstPeriodStartDate": "2025-08-26T12:00:00+00:00",
        "trialPeriodConfig": { // 优惠期规则
            "trialPeriodCount": 1, //优惠期数
            "trialPeriodAmount": { // 优惠期扣款金额
                "amount": 10,
                "currency": "USD"
            }
        }
    },
    "mitManagementUrl": "http://your.subscription.com", //非必填
    "paymentDetail": {
      "paymentMethodType": "APPLEPAY", //必传，值为APPLEPAY
      "mitType": "SCHEDULED", // 必传，MIT类型，周期性代扣时为SCHEDULED，非周期性代扣时为UNSCHEDULED
      "tokenForFutureUse": true, // 必传，值为true，生成paymentTokenID，用于后续代扣
      "merchantInitiated": false, // false表示是需要用户参数；true表示商户发起的代扣，无需用户参与
      "applePayPaymentData": { // 必传，apple支付要素解密后的参数
        "applicationExpirationDate": "231231",
        "applicationPrimaryAccountNumber": "1234209400123456",
        "currencyCode": "344",
        "deviceManufacturerIdentifier": "040010030273",
        "paymentData": {
            "eciIndicator": "7",
            "onlinePaymentCryptogram": "AqhVFUwAAuM69WEZxe+OMAACAAA="
        },
        "paymentDataType": "3DSecure",
        "transactionAmount": "100",
        "network": "Visa",
        "type": "credit",
        "displayName": "VISA 5743"
      },
      "buyerInfo": {
        "firstName": "Deborah",
        "lastName": "Swinstead",
        "email": "your@gmail.com",
        "phoneNo": "0609 031 114",
        "address": "Test Address",
        "city": "Holden Hill",
        "region": "SA",
        "zipCode": "5088",
        "clientIp": "211.52.321.225",
        "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
      }
    }
  }
}

响应示例:

json

{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "SUCCESS"
    }
}

4.3 使用前置组件绑定支付方式

前置组件绑定支付方式，商户需要通过两个步骤完成集成，具体请参考：集成步骤。

前置组件绑定支付方式时，商户服务端需要调用PayerMax提供的2个API接口：Apply Drop-in Session API 和前置组件支付 API。Apply Drop-in Session接口不同环境请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/applyDropinSession
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/applyDropinSession

商户客户端集成示例：

// 获取 clientKey和sessionKey
const data = await post("applyDropinSession", {
    // 告诉服务端是订阅支付？
    ...params
})
// 创建applepay视图
applePay = PMdropin.create('applepay', {
  clientKey: data.clientKey,
  sessionKey: data.sessionKey,
  theme: yourTheme,
  payButtonStyle: data.yourPayButtonStyle,
  sandbox: data.yourFrameEnv
})
// 挂载dom
applePay.mount('.frame-applepay')
// load 加载事件 判断是否成功加载
applePay.on('load', (res = {}) => {
      const { code, msg } = res || {};
      if(code === "SUCCESS"){
        console.log('[merchant][load]success:', res)
      }else{
        console.log('[merchant][load]fail:', res)
      }
})
// 监听点击applepay按钮的事件，用户选择完订阅计划后，点击applepay按钮的时候可以通过这个事件来监听
applePay.on('payButtonClick', (res) => {
    // 禁用applepay按钮点击状态
     applePay.emit('setDisabled', true)
     // 需传入subscriptionPlan订阅计划和mitManagementUrl；
     applePay.emit('canMakePayment', {
         // subscriptionPlan 在周期性订阅的时候必传
          subscriptionPlan: {
            "subject": "subject",
            "description": "PMMAX周期首期扣款。",
            "totalPeriods": 12,
            "periodRule": {
                "periodUnit": "M", // 按月（M），D(日)，W（周），Y（年）扣款
                "periodCount": 1 // // 1个月扣款一次
            },
            "periodAmount": { // 固定期扣款金额
                "amount": 404.35,
                "currency": "SAR"
            },
            "firstPeriodStartDate": "2025-02-26T12:00:00+00:00",
            "trialPeriodConfig": { // 优惠期规则
                "trialPeriodCount": 1, //优惠期数
                "trialPeriodAmount": { // 优惠期扣款金额
                    "amount": 10,
                    "currency": "SAR"
                }
            }
        },
        mitManagementUrl: "http://www.xxx.com"
     })
      .then(res => {
        console.log('canMakePayment', res)
        const paymentToken = res?.data?.paymentToken
        data.paymentToken = paymentToken// 加密token
        if(paymentToken){
          // 调用PayerMax orderAndPay接口发起支付
          orderAndPay()
        }else{
            // 如果入参不符合格式 这里会抛出错误信息
            // 错误res示例：{ code: "MIT_PARAMS_VALIDATION_ERROR", message: "xxx  is required" }
          _payLog(JSON.stringify(res))
          applePay.emit('setDisabled', false)
        }
      })
      .catch(err => {
         // 如果校验不通过 报明确的错。TODO
        console.log('canMakePayment catch', err)
        applePay.emit('payFail')
        applePay.emit('setDisabled', false)
        _payLog(JSON.stringify(err))
      })
})

Apply Drop-in Session请求入参示例：

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "3b242b56a8b64274bcc37dac281120e3",
  "merchantNo": "020213827212251",
  "data": {
    "totalAmount": "10", // 代扣金额
    "mitType": "SCHEDULED", // 必填，值为SCHEDULED
    "currency": "USD", // 必填
    "country": "SA", // 非必填
    "userId": "U10001", // 必填，用户id
    "componentList": [ // 必填，组件支持的支付方式
      "APPLEPAY"
    ]
  }
}

响应示例:

json

{
  "code": "APPLY_SUCCESS",
  "msg": "Success.",
  "data": {
    "clientKey": "37114858239eur2384237r810482390",
    "sessionKey": "bdsf8982348974hhf82934bf8239424"
  }
}

前置组件支付接口不同环境的请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay

请求参数示例：

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // 商户下单唯一单号
    "subject": "代扣标题", // 标题
    "totalAmount": 10, // 代扣金额
    "currency": "USD", // 代扣币种
    "userId": "test1111", // 用户号
    "language": "en",
    "reference": "test mit",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // 固定值：Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // 终端类型，WEB、WAP or APP
    "osType": "ANDROID", // 操作系统类型 ANDROID or IOS
    "subscriptionPlan": { //非必填 订阅信息
        "subject": "subject",
        "description": "PMMAX周期首期扣款。",
        "totalPeriods": 12,
        "periodRule": {
            "periodUnit": "M", // 按月（M），D(日)，W（周），Y（年）扣款
            "periodCount": 1 // // 1个月扣款一次
        },
        "periodAmount": { // 固定期扣款金额
            "amount": 20,
            "currency": "USD"
        },
        "firstPeriodStartDate": "2025-08-26T12:00:00+00:00",
        "trialPeriodConfig": { // 优惠期规则
            "trialPeriodCount": 1, //优惠期数
            "trialPeriodAmount": { // 优惠期扣款金额
                "amount": 10,
                "currency": "USD"
            }
        }
    },
    "mitManagementUrl": "http://your.subscription.com", //非必填
    "paymentDetail": {
      "paymentToken": "CPT4f200d278f3a454b9e91c81edc641e2b", // 必传
      "sessionKey": "bdsf8982348974hhf82934bf8239424", // 必传
      "mitType": "SCHEDULED", // 必传，MIT类型，周期性代扣时为SCHEDULED，非周期性代扣时为UNSCHEDULED
      "tokenForFutureUse": true, // 必传，值为true，生成paymentTokenID，用于后续代扣
      "merchantInitiated": false, // 必传，false标识不是商户主动发起，有用户参与；true标识商户主动发起，不需要用户参与
      "buyerInfo": {
        "firstName": "Deborah",
        "lastName": "Swinstead",
        "email": "your@gmail.com",
        "phoneNo": "0609 031 114",
        "address": "Test Address",
        "city": "Holden Hill",
        "region": "SA",
        "zipCode": "5088",
        "clientIp": "211.52.321.225",
        "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
      }
    }
  }
}

响应示例:

json

{
  "code": "APPLY_SUCCESS",
  "msg": "",
  "data": {
    "outTradeNo": "P1642410680681",
    "tradeToken": "T2024062702289232000001",
    "status": "SUCCESS"
  }
}

5. 获取绑定支付方式结果

商户可以通过绑定支付方式时上送的notifyUrl地址来接收绑定支付方式结果，详细结果报文请参考：支付结果通知 API。

绑定支付方式成功通知参数示例：

json

{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "APPLY_SUCCESS",
    "data": {
        "channelNo": "TPC425300174064927201759000685",
        "completeTime": "2025-02-27T09:41:12.267Z",
        "country": "UN",
        "currency": "USD",
        "outTradeNo": "20250227174104451122388",
        "paymentDetails": [
            {
                "applePayInfo": {
                    "cardOrg": "VISA",
                    "cardIdentifierNo": "123456****1234"
                },
                "paymentMethodType": "APPLEPAY",
                "paymentTokenID": "PMTOKEN20250227071843552050007000094"
            }
        ],
        "reference": "reference",
        "status": "SUCCESS",
        "thirdChannelNo": "mtjxuvedrz58345",
        "totalAmount": 10,
        "tradeToken": "T2025022709425329000091"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Success.",
    "notifyTime": "2025-02-27T09:41:12 +0000",
    "notifyType": "PAYMENT"
}

绑定支付方式成功后，PayerMax会生成paymentTokenID，后续代扣时需使用该paymentTokenID来进行代扣。

绑定支付方式失败通知参数示例：

json

{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "PAYMENT_FAILED",
    "data": {
        "channelNo": "TPC462800174064934688659000687",
        "completeTime": "2025-02-27T09:44:00.216Z",
        "country": "UN",
        "currency": "USD",
        "outTradeNo": "20250227174218727122389",
        "paymentDetails": [
            {
                "applePayInfo": {
                    "cardOrg": "VISA",
                    "cardIdentifierNo": "123456****1234"
                },
                "paymentMethodType": "APPLEPAY",
            }
        ],
        "reference": "reference",
        "status": "FAILED",
        "thirdChannelNo": "dycbhzfsmz69480",
        "totalAmount": 10,
        "tradeToken": "T2025022709462829000092"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Provider failed to process.",
    "notifyTime": "2025-02-27T09:44:00 +0000",
    "notifyType": "PAYMENT"
}

6. 发起代扣

参数说明：

totalAmount：交易金额必须大于0；
integrate：传固定值Direct_Payment；
paymentDetail.mitType：代扣类型，SCHEDULED为周期性订阅，UNSCHEDULED为非周期性代扣；
paymentDetail.tokenForFutureUse：true/false，是否需要生成token用于后续代扣；后续扣款，传false或不传；
paymentDetail.merchantInitiated：true/false，是否是商户发起的交易；后续扣款，由商户发起，无需用户参与，传值为true；
paymentDetail.paymentTokenID：绑定方式成功后PayerMax返回的Token。

后续代扣API文档，请参阅纯API支付 API。不同环境的请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay

请求参数示例：

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // 商户下单唯一单号
    "subject": "代扣标题", // 标题
    "totalAmount": 10, // 代扣金额
    "currency": "USD", // 代扣币种
    "country": "SA", // 必传
    "userId": "test1111", // 用户号
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // 固定值：Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // 终端类型，WEB、WAP or APP
    "osType": "ANDROID", // 操作系统类型 ANDROID or IOS
    "paymentDetail": {
      "paymentMethodType": "APPLEPAY", //必传，值为APPLEPAY
      "mitType": "SCHEDULED", // 必传，MIT类型，周期性代扣时为SCHEDULED，非周期性代扣时为UNSCHEDULED
      "tokenForFutureUse": false, // 非必传，值为true，生成paymentTokenID，用于后续代扣
      "merchantInitiated": true, // 必传，false表示是需要用户参数；true表示商户发起的代扣，无需用户参与
      "paymentTokenID": "PMTOKEN20230424072005899168200035002", // 首笔代扣成功后PayerMax返回给商户的Token值
      "buyerInfo": {
        "firstName": "Deborah",
        "lastName": "Swinstead",
        "email": "your@gmail.com",
        "phoneNo": "0609 031 114",
        "address": "Test Address",
        "city": "Holden Hill",
        "region": "SA",
        "zipCode": "5088",
        "clientIp": "211.52.321.225",
        "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
      }
    }
  }
}

商户响应参数示例：

json

{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "SUCCESS"
    }
}

7. 获取代扣结果

无论绑定支付方式还是后续代扣，扣款成功或失败以后，PayerMax会将扣款结果通知给商户，商户也可主动查询代扣结果。

7.1 使用callback获取支付结果

商户可以通过支付时上送的notifyUrl地址来接收支付结果，详细通知报文请参考：支付结果通知 API。

代扣成功通知参数示例：

json

{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "APPLY_SUCCESS",
    "data": {
        "channelNo": "TPC425300174064927201759000685",
        "completeTime": "2025-02-27T09:41:12.267Z",
        "country": "US",
        "currency": "USD",
        "outTradeNo": "20250227174104451122388",
        "paymentDetails": [
            {
                "applePayInfo": {
                    "cardOrg": "VISA",
                    "cardIdentifierNo": "123456****1234"
                },
                "paymentMethodType": "APPLEPAY",
                "paymentTokenID": "PMTOKEN20250227071843552050007000094"
            }
        ],
        "reference": "reference",
        "status": "SUCCESS",
        "thirdChannelNo": "mtjxuvedrz58345",
        "totalAmount": 10,
        "tradeToken": "T2025022709425329000091"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Success.",
    "notifyTime": "2025-02-27T09:41:12 +0000",
    "notifyType": "PAYMENT"
}

代扣失败通知参数示例：

json

{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "PAYMENT_FAILED",
    "data": {
        "channelNo": "TPC462800174064934688659000687",
        "completeTime": "2025-02-27T09:44:00.216Z",
        "country": "US",
        "currency": "USD",
        "outTradeNo": "20250227174218727122389",
        "paymentDetails": [
            {
                "applePayInfo": {
                    "cardOrg": "VISA",
                    "cardIdentifierNo": "123456****1234"
                },
                "paymentMethodType": "APPLEPAY",
            }
        ],
        "reference": "reference",
        "status": "FAILED",
        "thirdChannelNo": "dycbhzfsmz69480",
        "totalAmount": 10,
        "tradeToken": "T2025022709462829000092"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Provider failed to process.",
    "notifyTime": "2025-02-27T09:44:00 +0000",
    "notifyType": "PAYMENT"
}

接收到通知结果以后，需要响应正确的code和message给PayerMax，否则PayerMax会认为商户未能正常接收到通知消息，会重试通知6次。

商户响应参数示例：

json

{
  "msg": "Success",
  "code": "SUCCESS"
}

7.2 使用查询获取支付结果

获取支付结果API文档，请参阅交易查询 API。不同环境的请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderQuery
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderQuery

代扣结果查询请求参数示例：

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T07:51:15.597+00:00",
  "appId": "a0dddd1f622243cb9aa1b676e808b5f8",
  "merchantNo": "02021382719993",
  "data": {
    "outTradeNo": "P1642410680681"
  }
}

代扣结果查询响应参数示例：

json

{
  "msg": "Success.",
  "code": "APPLY_SUCCESS",
  "data": {
    "reference": "reference查询和回调返回",
    "country": "SA",
    "totalAmount": 10,
    "outTradeNo": "P1642410680681",
    "currency": "USD",
    "channelNo": "DMCP000000000177005",
    "thirdChannelNo": "4ikqJ6ktEqyRawE1dvqb9c",
    "paymentCode": "2312121212",
    "tradeToken": "T2024062702289232000001",
    "completeTime": "2023-10-20T03:28:23.092Z",
    "paymentDetails": [
      {
        "targetOrg": "*",
        "applePayInfo": {
            "cardOrg": "VISA",
            "cardIdentifierNo": "123456****1234"
        },
        "paymentMethodType": "APPLEPAY",
        "paymentTokenID": "PMTOKEN20250224063712195626335000250",
        "payAmount": 10,
        "exchangeRate": "1",
        "payCurrency": "USD"
      }
    ],
    "status": "SUCCESS",
    "resultMsg": ""
  }
}

8. 解绑支付方式

用户取消代扣后，商户需要为用户解绑该支付方式，解绑支付方式API文档，请参考PaymentTokenID解绑 API。不同环境的请求地址如下：

Prod请求地址：https://pay-gate.payermax.com/aggregate-pay/api/gateway/removePaymentToken
Test请求地址：https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/removePaymentToken

请求参数示例：

json

{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-22T10:00:00.500+08:00",
  "appId": "46153e2b787241ae8b01857bb087d1bd",
  "merchantNo": "010229810189301",
  "data": {
    "userId": "TEST",
    "paymentTokenID": "PMTOKEN20230424072005899168200035002",
    "removeReason": "remove"
  }
}

响应参数示例：

json

{
  "code": "APPLY_SUCCESS",
  "msg": "Success",
  "data": {
    "paymentTokenID": "PMTOKEN20230424072005899168200035002",
    "userId": "Test",
    "paymentTokenStatus": "Deleted"
  }
}

集成模式概览

收单基础产品

CARD

GOOGLEPAY

APPLEPAY

订阅代扣

APM

CARD

APPLEPAY

前置组件

Tokenization

Auth-Capture

争议

业务风险管控

错误排查

API付款

支付方式列表

欧洲

ApplePay周期性订阅集成-商户管理订阅计划 ​

1. 准备事项 ​

2. 交互流程 ​

3. 代扣规则 ​

4. 绑定支付方式 ​

4.1 使用PayerMax收银台绑定支付方式 ​

4.2 API模式绑定支付方式 ​

4.3 使用前置组件绑定支付方式 ​

5. 获取绑定支付方式结果 ​

6. 发起代扣 ​

7. 获取代扣结果 ​

7.1 使用callback获取支付结果 ​

7.2 使用查询获取支付结果 ​

8. 解绑支付方式 ​

ApplePay周期性订阅集成-商户管理订阅计划

1. 准备事项

2. 交互流程

3. 代扣规则

4. 绑定支付方式

4.1 使用PayerMax收银台绑定支付方式

4.2 API模式绑定支付方式

4.3 使用前置组件绑定支付方式

5. 获取绑定支付方式结果

6. 发起代扣

7. 获取代扣结果

7.1 使用callback获取支付结果

7.2 使用查询获取支付结果

8. 解绑支付方式
